RF Components

MegaPhase now offers a wide variety of components, including off-the-shelf and custom designs.



N-Way Power Dividers

  • 0.5 - 40 GHz
  • Octave and multi-octave bandwidths
  • Low insertion loss and amplitude balance
  • Wide variety of connectors
  • Designed to meet MIL-DTL-23 971




90° Quadrature Hybrids

  • 0.5 - 40 GHz
  • Octave and multi-octave bandwidths
  • Low insertion loss and VSWR
  • High isolation
  • Low PIM designs (<-160 dBc)
  • Wide variety of connectors

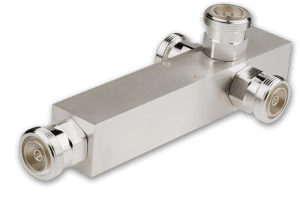

Directional Couplers

  • Ultra wide band through 46 GHz
  • Low insertion loss
  • High directivity
  • High power designs
  • Low PIM designs (<-160 dBc)
  • Wide variety of connectors

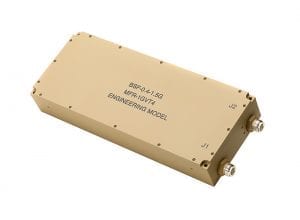

Custom Capabilities

  • Low PIM reactive splitters - View Data Sheet
  • Mixers & frequency doublers
  • I & Q networks
  • Phase shifters
  • Custom Filters and multiplexers
  • Beamformers
  • PIN diode attenuators and switches




Rack-Mounted Power Dividers with Monitor Ports

  • Low Loss featuring minimum 17dB
  • 6-Way Power Dividers
  • Quick Connect HPQN Connectors to 2700 MHz
  • Monitor Port
